20% BY WEIGHT

Primozone ozone generators produce ozone at a higher concentration than most other commercially available, high-capacity ozone generators, delivering ozone at a concentration of up to 300 g 03/m³ O2, equivalent to 20 % by weight, with an absolute gas pressure of 3 bar(g) / 43.5 psi.

TRUSTED.

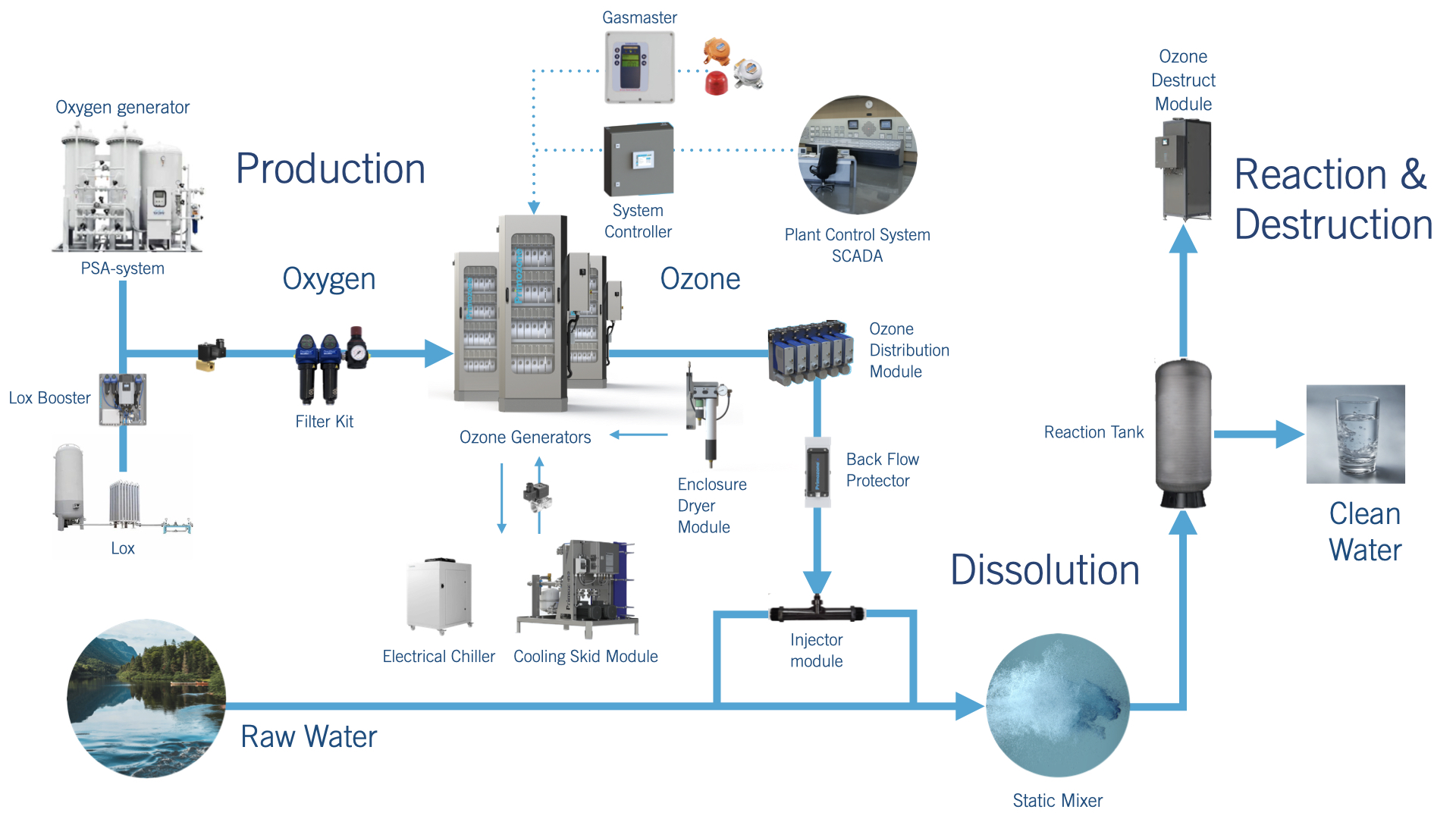

The high ozone concentration produced in Primozone’s generators and high gas pressure result in greatly improved efficiency when dissolving ozone gas in water. Tests performed on Primozone generators at the Norwegian Institute of Technology have measured 98 % dissolution in under 3 minutes. This proves that the Primozone generators are very efficient for water treatment, and also very cost effective. The high gas pressure makes it possible to use alternative injection systems and place the generators further away from a reaction tank.

Exclusive.
Intelligent.

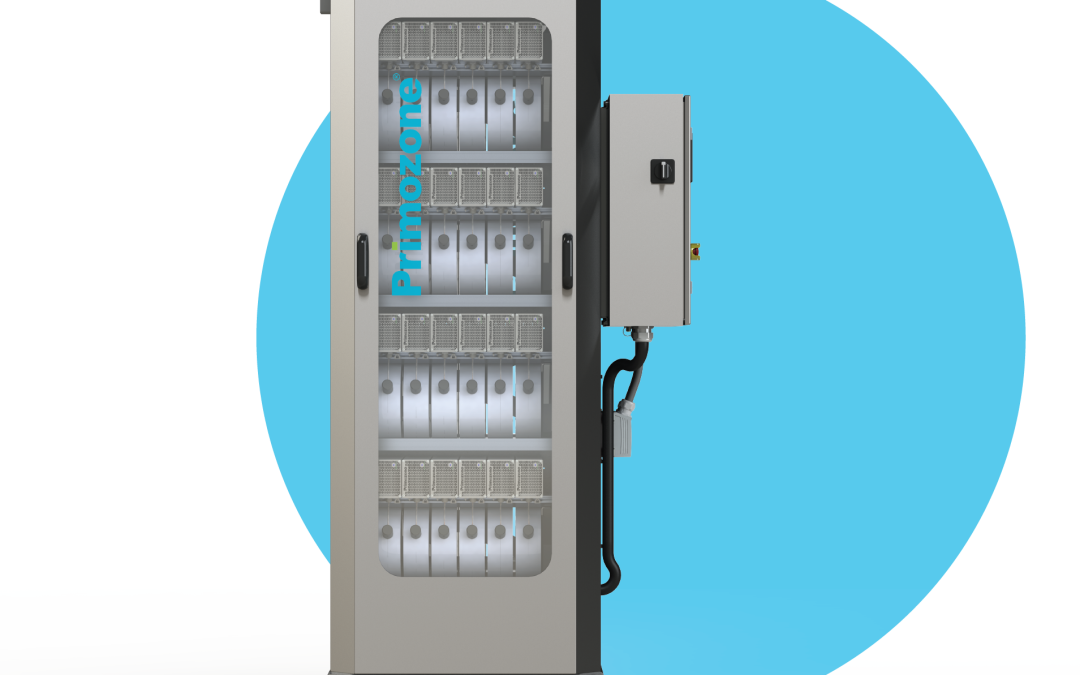

Whatever size ozone generator you need, you won’t have to compromise on features. All Primozone ozone generators are based on the same redefining ozone technology that delivers world–class ozone production.

The GM Series offers ozone generators in ten standard sizes, and modular design makes it possible to combine these standard generators to fit virtually any ozone needs, from small to large demand. No matter what capacity you require, Primozone can offer a suitable solution.

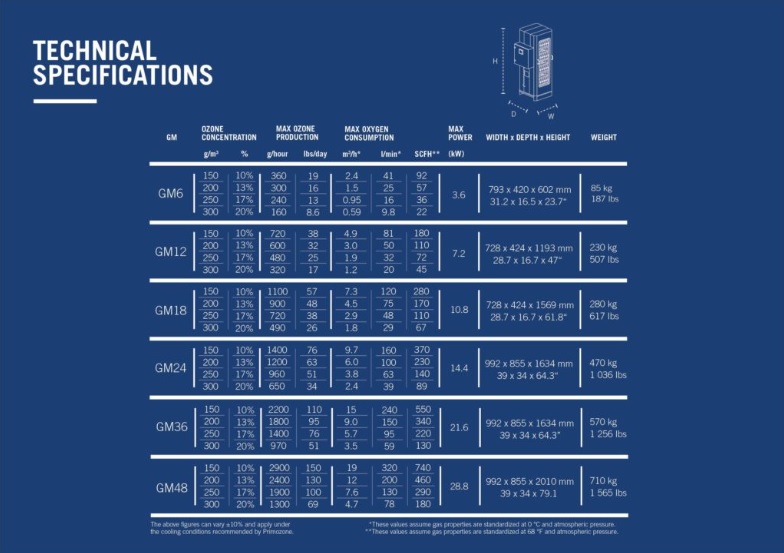

Ozone capacity for these 10 different models range from 6 g to 2.9 kg ozone per hour (0.3 to 153 lbs/day) with a 150–300 g/m3 ozone concentration. The GM6-48 series ranges from 20 g to 2.9 kg ozone per hour (0.5 to 153 lbs/day). A combination of two or more generators can cover deliver a capacity of up to 60 kg ozone per hour (3,200 lbs/day). An existing system can easily be upgraded with additional ozone generators to cover future needs.

Primozone generators produce ozone at the exact levels needed at any given time. When ozone production varies according to redox (ORP) value or flow, oxygen and energy consumption for the complete system adjusts accordingly, making the entire solution energy efficient – and thisonly one of the unique features of the Primozone ozone generator.

Each generator features an integrated control system for safety, monitoring and control. The system delivers information in real time about ozone levels, gas pressure and gas flow. In addition, the ozone generator is equipped with a user–friendly interface for simple operation. The built-in control system will automatically log and handle various production disturbances such asloss of oxygen supply.

The Primozone ozone generator is a complete plug-and-play system that’s easy to install and operate. Modular design makes the generator reliable and very easy to maintain. Most systems are up and running within 24 hours after delivery. What’s more, our generators are big on performance, but they take up little space. The Primozone generator has an impressively small footprint – space requirements can be as low as 20 % of the footprint required by a conventionalgenerator.
